Carbon Fiber Tubes
Woven Carbon Fiber Square Tube
Size Range
Side length 8–200mm | Thickness 0.5–100mm | Length ≤4000mm (Custom available)
Process
Pultrusion | Fiber Orientation: 0°/90°, ±45°
Weave & Finish
Plain / Twill | Glossy / Matte
Fiber Tow
1K / 3K / 6K / 12K / 24K available
Available Fiber Grades
T300 / T700 / T800 / T1000 / M40 / M55 / M60
Applications
Ski poles | Bats | Racing | Aerospace | CNC parts
MOQ & Shipping
MOQ 10 pcs | Selected sizes stocked in California; confirm availability and lead time
Custom Service
Custom sizes available | Request pricing and lead time
Send outside width and height, wall thickness, length, quantity and delivery ZIP code. Include a drawing for corner radii and critical tolerances.
Configuration review: Dimensions, tolerances and material options are confirmed for each configuration. The stated size ranges cannot be combined arbitrarily. Send your drawing or target dimensions for a feasibility review.

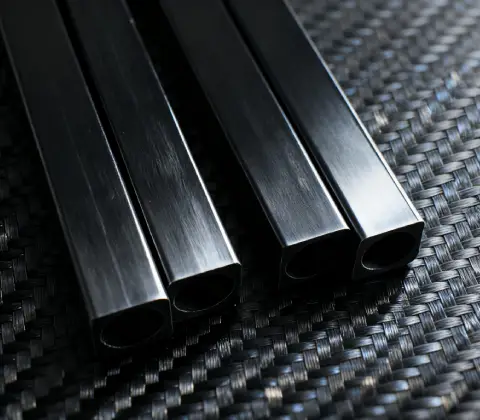

Pultruded Carbon Fiber Square Tube
Size Range
Side length 8–200mm | Thickness 0.5–100mm | Length ≤6000mm (Custom available)
Process
Pultrusion
Weave & Finish
UD | Glossy / Matte
Fiber Tow
1K / 3K / 6K / 12K / 24K available
Available Fiber Grades
T300 / T700 / T800 / T1000 / M40 / M55 / M60
Applications
Aerospace | Industrial| Structural | Automotive | Sporting
MOQ & Shipping
MOQ 10 pcs | Selected sizes stocked in California; confirm availability and lead time
Custom Service
Custom sizes available | Request pricing and lead time
Send outside width and height, wall thickness, length, quantity and delivery ZIP code. Include a drawing for corner radii and critical tolerances.
Configuration review: Dimensions, tolerances and material options are confirmed for each configuration. The stated size ranges cannot be combined arbitrarily. Send your drawing or target dimensions for a feasibility review.

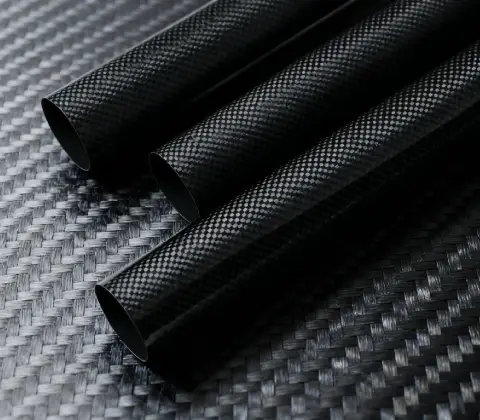

Woven Carbon Fiber Round Tube
Size Range
Diameter 5–100mm | Thickness 0.5–100mm | Length ≤3000mm (Custom available)
Process
Roll Wrapping | Mandrel Roll-Wrapping | Fiber Orientation: 0°/90°, ±45°
Weave & Finish
Plain / Twill | Glossy / Matte
Fiber Tow
1K / 3K / 6K / 12K / 24K available
Available Fiber Grades
T300 / T700 / T800 / T1000 / M40 / M55 / M60
Applications
Model aircraft | Support rods | Industrial frames
MOQ & Shipping
MOQ 50 pcs | Selected sizes stocked in California; confirm availability and lead time
Custom Service
Custom sizes available | Request pricing and lead time
Send outside diameter (OD), inside diameter (ID) or wall thickness, length, quantity and delivery ZIP code for pricing and availability
Configuration review: Dimensions, tolerances and material options are confirmed for each configuration. The stated size ranges cannot be combined arbitrarily. Send your drawing or target dimensions for a feasibility review.

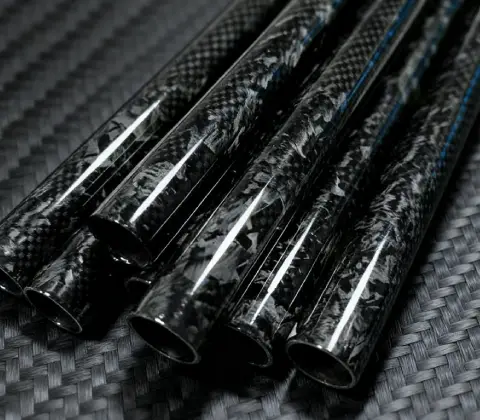

Forged pattern carbon fiber tube
Size Range
Diameter 5–100mm | Thickness 0.5–100mm | Length ≤3000mm (Custom available)
Process
Roll Wrapping | Mandrel Roll-Wrapping | Fiber Orientation: 0°/90°, ±45°
Weave & Finish
Forged pattern | Glossy / Matte
Fiber Tow
1K / 3K / 6K / 12K / 24K available
Available Fiber Grades
T300 / T700 / T800 / T1000
Applications
Model aircraft | Support rods | Industrial frames
MOQ & Shipping
MOQ 50 pcs | Selected sizes stocked in California; confirm availability and lead time
Custom Service
Custom sizes available | Request pricing and lead time
Send outside diameter (OD), inside diameter (ID) or wall thickness, length, quantity and delivery ZIP code for pricing and availability
.
Configuration review: Dimensions, tolerances and material options are confirmed for each configuration. The stated size ranges cannot be combined arbitrarily. Send your drawing or target dimensions for a feasibility review.

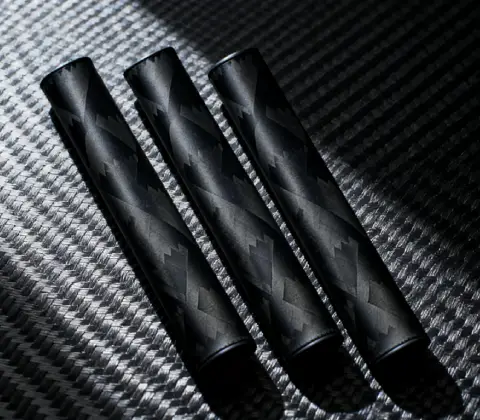

Filament wound carbon fiber tube
Size Range
Diameter 8–1000mm | Thickness 1–200mm | Length ≤12000mm (Custom available)
Process
Filament Winding | Fiber Orientation: 15°–90°
Weave & Finish
Glossy / Matte | Spraying, painting, or other surface treatments available
Fiber Tow
1K / 3K / 6K / 12K / 24K available
Available Fiber Grades
T300 / T700 / T800 / T1000 / M40 / M55 / M60
Applications
Aerospace | Automotive | Wind power | Sports | Medical
MOQ & Shipping
MOQ 50 pcs | Selected sizes stocked in California; confirm availability and lead time
Custom Service
Custom sizes available | Request pricing and lead time
Send outside diameter (OD), inside diameter (ID) or wall thickness, length, quantity and delivery ZIP code for pricing and availability
Configuration review: Dimensions, tolerances and material options are confirmed for each configuration. The stated size ranges cannot be combined arbitrarily. Send your drawing or target dimensions for a feasibility review.

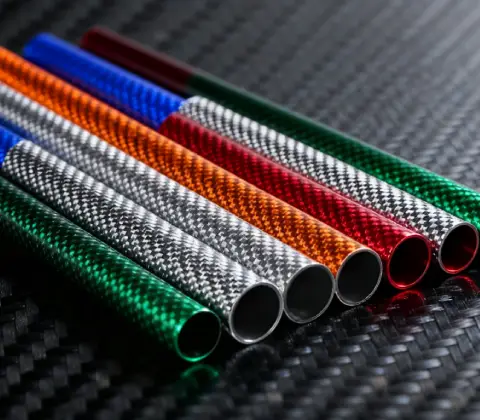

Colored Carbon Fiber Round Tube
Size Range
Diameter 5–100mm | Thickness 0.5–100mm | Length ≤3000mm (Custom available)
Process
Roll Wrapping | Mandrel Roll-Wrapping | Fiber Orientation: 0°/90°, ±45°
Weave & Finish
Plain / Twill | Glossy / Matte
Fiber Tow
1K / 3K / 6K / 12K / 24K available
Available Fiber Grades
T300 / T700 / T800 / T1000 / M40 / M55 / M60
Applications
Model aircraft | Support rods | Industrial frames
MOQ & Shipping
MOQ 50 pcs | Selected sizes stocked in California; confirm availability and lead time
Custom Service
Custom sizes available | Request pricing and lead time
Send outside diameter (OD), inside diameter (ID) or wall thickness, length, quantity and delivery ZIP code for pricing and availability
Configuration review: Dimensions, tolerances and material options are confirmed for each configuration. The stated size ranges cannot be combined arbitrarily. Send your drawing or target dimensions for a feasibility review.

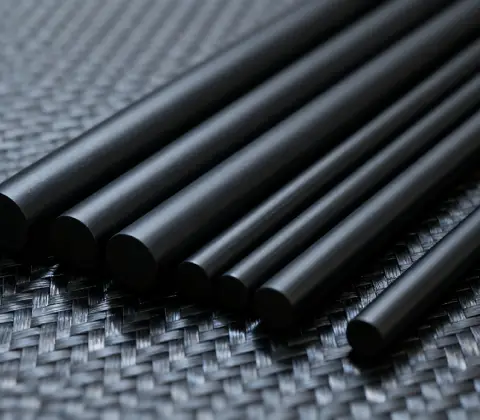

Pultruded carbon fiber tube
Size Range
Diameter 10–200mm | Thickness 1–200mm | Length Custom available
Process
Pultrusion | Fiber Orientation: 0° (unidirectional)
Weave & Finish
UD | Glossy / Matte,Spraying, painting, or other surface treatments available
Fiber Tow
1K / 3K / 6K / 12K / 24K available
Available Fiber Grades
T300 / T700 / T800 / T1000 / M40 / M55 / M60
Applications
Aerospace | Automotive | Wind power | Sports | Medical
MOQ & Shipping
MOQ 100 pcs | Selected sizes stocked in California; confirm availability and lead time
Custom Service
Custom sizes available | Request pricing and lead time
Send outside diameter (OD), inside diameter (ID) or wall thickness, length, quantity and delivery ZIP code for pricing and availability
Configuration review: Dimensions, tolerances and material options are confirmed for each configuration. The stated size ranges cannot be combined arbitrarily. Send your drawing or target dimensions for a feasibility review.
