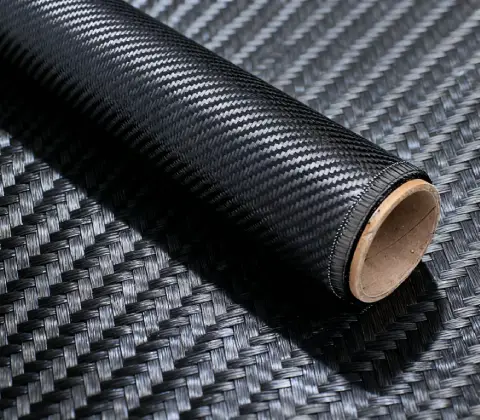

Carbon Fiber Fabric

Size Range
Weight 60–800gsm (60/80/100/120/160/200/240/280/300/320/400/480/600/800) | Width 1000mm (Custom available)

Process
Woven | Weave: 2×2 twill / Plain / 4×4 twill (Custom available)

Weave & Finish
Standard carbon fiber fabric | Custom weaves & finishes available

Fiber Tow
1K / 3K / 6K / 12K / 24K available

Available Fiber Grades
T300 / T700 / T800 / T1000 / M40 / M55 / M60

Applications
Sports equipment | Construction | Bridge reinforcement | Marine | Aerospace | Automotive

MOQ & Shipping
MOQ 50m | Selected sizes stocked in California; confirm availability and lead time

Custom Service
Custom weights, weaves & widths available | Request pricing and lead time

Send weave or orientation, fabric weight (gsm), width, required length, quantity and delivery ZIP code for pricing and availability

Size Range
Weight 100–800gsm (100/150/200/300/400/600/800) | Width 1270mm (Custom available)

Process

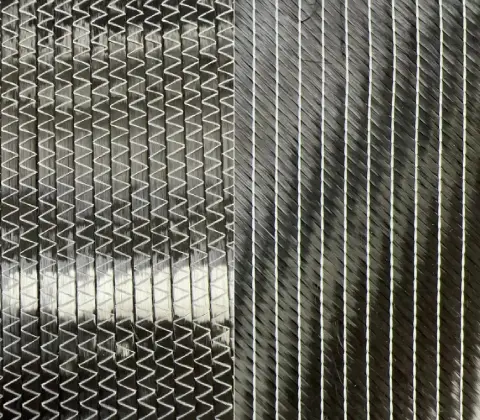

Biaxial weaving | Fiber Orientation: +45°/−45°, 0°/90°, three-axis, four-axis (Custom available)

Weave & Finish
Standard biaxial fabric | Custom orientations available

Fiber Tow
12K / 24K

Available Fiber Grades
T300 / T700 / T800 / T1000 / M40 / M55 / M60

Applications
Sports equipment | Construction | Bridge reinforcement | Marine

MOQ & Shipping
MOQ 50m | Selected sizes stocked in California; confirm availability and lead time

Custom Service
Custom widths & orientations available | Request pricing and lead time

Send weave or orientation, fabric weight (gsm), width, required length, quantity and delivery ZIP code for pricing and availability

Size Range
Grid width: 8/10/16/18/20/25mm | Weight: 52–206gsm | Fabric width: 1000mm

Process

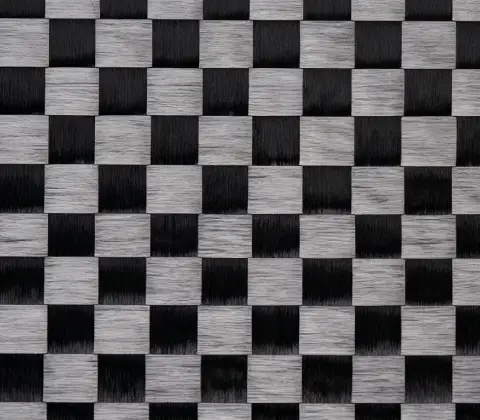

Spread tow weaving  | Weave: Plain weave

Weave & Finish
Standard spread tow fabric | Smooth surface for ultra-thin laminates

Fiber Tow
12K 24K spread tow (effectively thinner than standard 24K tow)

Available Fiber Grades
T300 / T700 / T800/M30

Grid Width Options (mm)
8 / 10 / 16 / 18 / 20 / 25

Weight Options (gsm)
52 / 83 / 103 / 114 / 130 / 132 / 165 / 183 / 206

Applications
Sports equipment | Construction | Bridge reinforcement | Marine

MOQ & Shipping
MOQ 50m | Selected sizes stocked in California; confirm availability and lead time

Custom Service
Custom grid widths & weights available | Request pricing and lead time

Send weave or orientation, fabric weight (gsm), width, required length, quantity and delivery ZIP code for pricing and availability

Size Range
Weight 200–600gsm (200/300/600) | Width 100/150/200/300/500mm (Custom available)

Process

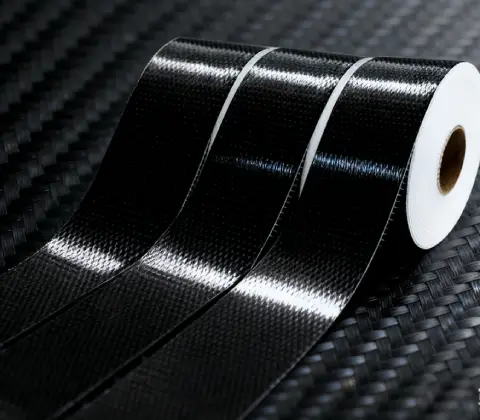

Unidirectional (UD) | Fiber Orientation: 0° (custom orientations available)

Weave & Finish
Non-woven UD fabric | All fibers aligned in single direction | Smooth / Matte finish

Fiber Tow
12K / 24K

Available Fiber Grades
T300 / T700 / T800 / T1000 (Grade 1 = High strength, Grade 2 = Standard)

Applications
Sports equipment | Construction | Bridge reinforcement | Marine

MOQ & Shipping
MOQ 50m | Selected sizes stocked in California; confirm availability and lead time

Custom Service
Custom widths & weights available | Request pricing and lead time

Send weave or orientation, fabric weight (gsm), width, required length, quantity and delivery ZIP code for pricing and availability

Size Range
Weight 200/240/280 gsm | Width 1.0 / 1.27 / 1.5m (Customizable) | Length 100m/roll

Process

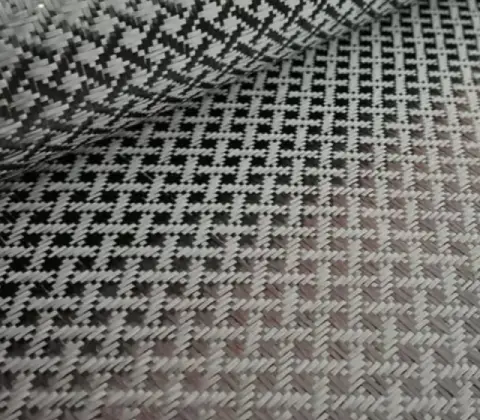

Jacquard weaving | Pattern: Cross-shaped

Weave & Finish
100% carbon fiber | Natural carbon fiber black | Smooth with characteristic carbon fiber texture

Fiber Tow
1K / 3K / 6K / 12K / 24K available

Available Fiber Grades
T300 / T700 / T800 / T1000 / M40 / M55 / M60

Applications
Aerospace | Automotive | Sports equipment | Decorative panels

MOQ & Shipping
MOQ 10m | Selected sizes stocked in California; confirm availability and lead time

Custom Service
Custom widths, weights & patterns available | Request pricing and lead time

Send weave or orientation, fabric weight (gsm), width, required length, quantity and delivery ZIP code for pricing and availability

Size Range
Weight 200/240/280 gsm | Width 1.0 / 1.27 / 1.5m (Customizable) | Length 100m/roll

Process

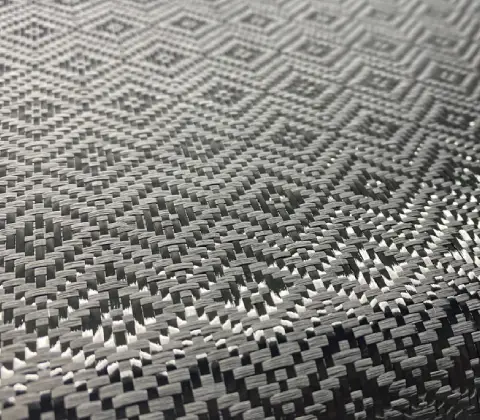

Jacquard weaving | Pattern: Rhombus-shaped

Weave & Finish
100% carbon fiber | Natural carbon fiber black | Smooth with characteristic carbon fiber texture

Fiber Tow
1K / 3K / 6K / 12K / 24K available

Available Fiber Grades
T300 / T700 / T800 / T1000 / M40 / M55 / M60

Applications
Aerospace | Automotive | Sports equipment | Decorative panels | Consumer electronics

MOQ & Shipping
MOQ 10m | Selected sizes stocked in California; confirm availability and lead time

Custom Service
Custom widths, weights & patterns available | Request pricing and lead time

Send weave or orientation, fabric weight (gsm), width, required length, quantity and delivery ZIP code for pricing and availability
